JLSF-30HP Air Cooled Water Chiller Textile, Leather, Chemical Fiber, Paper Industry

Product Description:

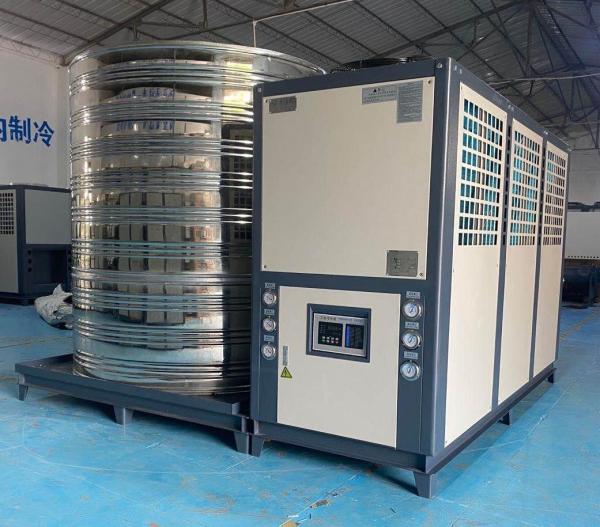

The air-cooled integrated chiller is a cooling device that integrates a chiller, an insulated water tank and an external circulation pump. It adopts an air-cooled cooling method, and the heat is discharged from the cooling system through a fan without an additional cooling water source. The integrated design of the air-cooled integrated chiller makes installation easier for users.

Product Features:

The following are some characteristics and application scenarios of air-cooled integrated chillers:

1. Simplified installation: The air-cooled integrated chiller integrates a cooling tower and a chiller, and the installation is relatively simple without cumbersome piping and cooling water systems.

2. Space-saving: Compared with traditional cooling systems, air-cooled integrated chillers take up less space and are suitable for places with limited space.

3. Built-in fan: The air-cooled integrated chiller has a built-in fan, and the heat is discharged through the operation of the fan, without additional cooling water pumps and cooling towers.

4. Independent operation: The air-cooled integrated chiller can operate independently without relying on an external cooling water source, and is suitable for some environments where cooling water cannot be provided.

Working Principle:

The main components of an air-cooled chiller include a compressor, an air condenser, an expansion valve, and an evaporator. Here is a basic overview of its workflow:

1.The compressor takes in low-pressure, low-temperature refrigerant gas and compresses it into high-pressure, high-temperature gas.

2.This high-temperature, high-pressure refrigerant gas enters the air condenser, exchanges heat with the ambient air, and discharges heat to the environment, while the refrigerant condenses from a gaseous state to a liquid state.

3.The high-pressure refrigerant liquid passes through the expansion valve, the pressure suddenly drops, and it turns into a low-pressure and low-temperature refrigerant liquid.

4.The low-temperature and low-pressure refrigerant liquid enters the evaporator, absorbs indoor heat, evaporates into a gaseous state by itself, and the indoor temperature drops to achieve the purpose of refrigeration.

5.The refrigerant gas is sucked into the compressor again to complete a cycle.

The advantages of air-cooled chillers include simple installation, no need for cooling towers and cooling water pumps, and low maintenance costs. However, its efficiency is lower than that of water-cooled chillers, especially at high ambient temperatures, and its efficiency will be further reduced

Techinical Parameters:

Application Industry:

1. Industrial production: The air-cooled integrated chiller is suitable for cooling needs in industrial production, such as equipment cooling in machining, injection molding, laser cutting and other processes.

2. Commercial buildings: Air-cooled integrated chillers can be used in the air-conditioning system of commercial buildings, such as office buildings, shopping centers, hotels and other places for air-conditioning cooling.

3. Data center: Due to the high cooling requirements of the data center, the air-cooled integrated chiller can provide a stable cooling effect and maintain the normal operation of the data center.

4. Medical facilities: The equipment and machines in medical facilities also need to be cooled, and the air-cooled integrated chiller can meet the cooling needs of medical facilities, such as hospital operating rooms, laboratories, etc.

Overall, the air-cooled integrated chiller has the advantages of easy installation, space saving and independent operation, and is widely used in industrial, commercial and medical fields to meet the cooling needs of different places.

Automotive Manufacturing Chemical Engineering Electronics Industry Electroplating Industry
