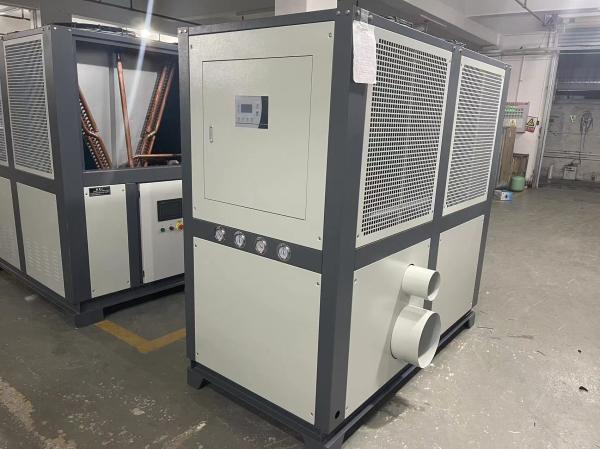

    JLSLF-30HP Industrial Air Cooled Air Chiller 220V 380V 50HZ 60HZ

    Ask Lasest Price
    Brand Name : JIALIS
    Model Number : JLSLF-30HP
    Certification : CE/ISO9001
    Price : Discuss
    Payment Terms : T/T
    Supply Ability : 300 units per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    JLSLF-30HP Industrial Air Cooled Air Chiller 220V 380V 50HZ 60HZ

    JLSLF-30HP Air Cooled Air Chiller Cooling Heat Sources In Machinery, Machine Tools And Processes


    Product Description:


    An industrial air cooler is an industrial refrigeration device that lowers the temperature by forced circulation of air. It is mainly composed of motor, wind wheel, compressor, cooler, temperature control system and so on.



    Product Features:


    Industrial air coolers have the following characteristics:


    1.High efficiency and energy saving: The industrial air cooler adopts high-efficiency and energy-saving compressors and coolers, which have high cooling efficiency and can save energy.


    2.Flexible installation: The industrial air cooler can be installed indoors or outdoors, and the type selection and installation can be carried out according to specific needs.


    3.Simple maintenance: The maintenance of industrial air coolers is relatively simple, and only requires regular cleaning and maintenance, which is relatively easy to maintain.


    4.Long service life: The main components of the industrial air cooler have a long service life, which can ensure the stable operation of the equipment.


    5.High temperature control accuracy: The industrial air cooler is equipped with a precise temperature control system, which can achieve precise temperature control.


    Techinical Parameters:


    ModelJLSLF-3HPJLSLF-5HPJLSLF-8HPJLSLF-10HPJLSLF-12HPJLSLF-15HPJLSLF-20HPJLSLF-25HPJLSLF-30HPJLSLF-40HP
    Cooling capacityKW/h8.8514.7523.629.535.444.255973.7588.5118
    Kcal/h24,33840,56364,90081,12597,350121,688162,250202,813243,375324,500
    Temperature range3℃~35℃
    Power supply1N-220V 50HZ/60HZ 3N-380V/415V 50HZ/60HZ
    Total powerKW2.574.317.659.911.413.718.822.5927.136.1
    CompressorTypeHermetic scroll type or piston
    PowerKW2.253.7567.5911.251518.7522.530
    RefrigerantTypeR22/R407c/R134a/R410a
    Control methodTemperature Sensing External Pressure Equalizing Expansion Valve
    volumeKg1.834.867.2912151824
    Cooling windm³/h37080015602300275033604100480054006200
    Cold wind pressurePa340520780890100010001000100010001000
    Fan powerKW0.350.50.751.51.82.233.754.56
    Cooling air volumem³/h30005000800010000120001500020000250003000040000
    Blower powerKW0.280.360.60.750.91.21.21.62.43.6
    Outlet pipe diametermm100125150150150150200200250300
    Machine sizeLmm800110013301330133015501760197020002100
    Wmm60070075075075078086090011301400
    Hmm1190124013301330133014601560170016601750
    Unit weightKg150260360420460530600700820950


    Application Industry:


    Industrial air cooler is a commonly used industrial refrigeration equipment, suitable for the following industries and occasions:


    1.Machinery manufacturing industry: such as metal processing, machine tool manufacturing and other fields, air coolers can be used to cool machine tools, drilling machines, lathes and other equipment.


    2.Plastic processing industry: such as injection molding, extrusion and other fields, air coolers can be used to quickly cool plastic products and improve production efficiency.


    3.Electronic and electrical industry: such as semiconductors, electronic components manufacturing and other fields, air coolers can be used to cool electronic components to improve their performance and life.


    4.Food processing industry: such as baking, drying and other fields, the air cooler can be used to quickly cool or dry food to improve production efficiency.


    5.Pharmaceutical manufacturing industry: For example, in the fields of pharmaceutical manufacturing and biological product manufacturing, air coolers can be used to cool pharmaceuticals and biological products to ensure their quality and safety.


    In addition, industrial air coolers can also be used in other industrial fields that require cooling or drying, such as textiles, papermaking, chemicals, metallurgy, etc.



    Automotive Manufacturing Chemical Engineering Electronics Industry Electroplating Industry

    Injection Molding Industry Pharmaceutical Industry Plastic Packaging Industry Printing Industry



    Upport and Services:


    Air Cooled Chiller technical support and service includes:

    1. 24/7 customer support
    2. Remote guidance installation and maintenance
    3. Remote Diagnostics and Troubleshooting
    4. Phone/Email Advice and Guidance
    5. User friendly documentation and manuals
    6. Software Updates and Upgrades
    7. Cost price of spare parts and consumables


    Packing and Shipping:


    Air-cooled chillers are packaged and shipped in standard plywood wooden boxes. All components are secured and protected with a film, and the unit is then placed on a pallet for easy transport. And affix the shipping mark information label on the wooden box to ensure correct delivery.


    What is the difference between the cooling capacity of chillers and air coolers?


    Chillers and air coolers are two different types of cooling systems, and there are some differences in their cooling capacity. Here are their main differences:

    1. The cooling capacity of the chiller: the chiller realizes cooling through the refrigerant circulation system. They usually have high cooling capacity and can absorb a large amount of heat from the object or equipment to be cooled in a short period of time. The cooling capacity of a chiller is usually measured by the heat absorbed per unit time (in kilowatts or British Giles). The size of the refrigeration capacity depends on factors such as the power of the chiller, the performance of the compressor, and the temperature difference of the cooling water.


    2. Cooling capacity of the air cooler: The air cooler achieves cooling effect by generating airflow. They suck in the surrounding air and expel the heat through the radiator. The cooling capacity of the air cooler is usually measured by the heat absorbed per unit time (in kilowatts or British Giles), similar to a water chiller. However, due to the different cooling methods of the air cooler, its cooling capacity is usually lower than that of the water chiller. The cooling capacity of the air cooler is affected by factors such as the design of the radiator, the performance of the fan, and the performance of the air flow.


    Overall, chillers typically have higher cooling capacity in large, demanding cooling applications. Chillers can provide lower cooling temperatures and are suitable for scenarios that require a large amount of cooling capacity and high temperature control requirements, such as industrial production, data centers, etc. The air cooler is more suitable for some specific environments and needs, such as local heat dissipation, ventilation and some small cooling needs. However, the specific cooling capacity still needs to consider factors such as actual application parameters, design and configuration.
